Luyang SANWU CABLE CO., LTD.
Fabricante profesional de cables y conductores

|
| Lugar de origen: | Luoyang, China |
| Nombre de la marca: | Luoyang Sanwu |
| Certificación: | IS09001, IS014001,OHSAS18001 |
| Número de modelo: | Alambre Rod de aluminio |
| Cantidad de orden mínima: | 20tones |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Plataforma de madera estándar de la exportación, carrete, o según la petición de los clientes |
| Tiempo de entrega: | 7-15 días de trabajo |
| Condiciones de pago: | T/T, L/C |
| Capacidad de la fuente: | 9000 toneladas por mes |
| Nombre: | Alambre Rod de aluminio | Aplicación: | Soluciones de cable y alambre |
|---|---|---|---|
| Capacidad: | 300tons por día | Diámetro: | 5.5 mm, 8.0mm.9.5 mm, 12 mm |
| Uso: | AAC AAAC ACSR | ||
| Resaltar: | corrosion-resistant aluminium wire rod,customized EC grade aluminium wire,1350 aluminium wire rod |
||

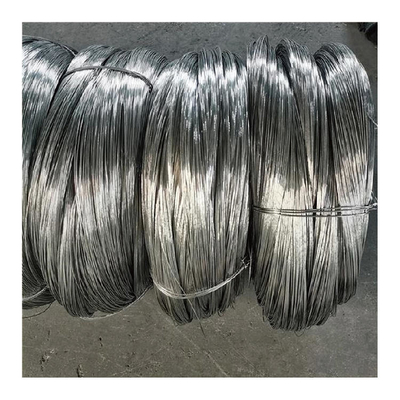

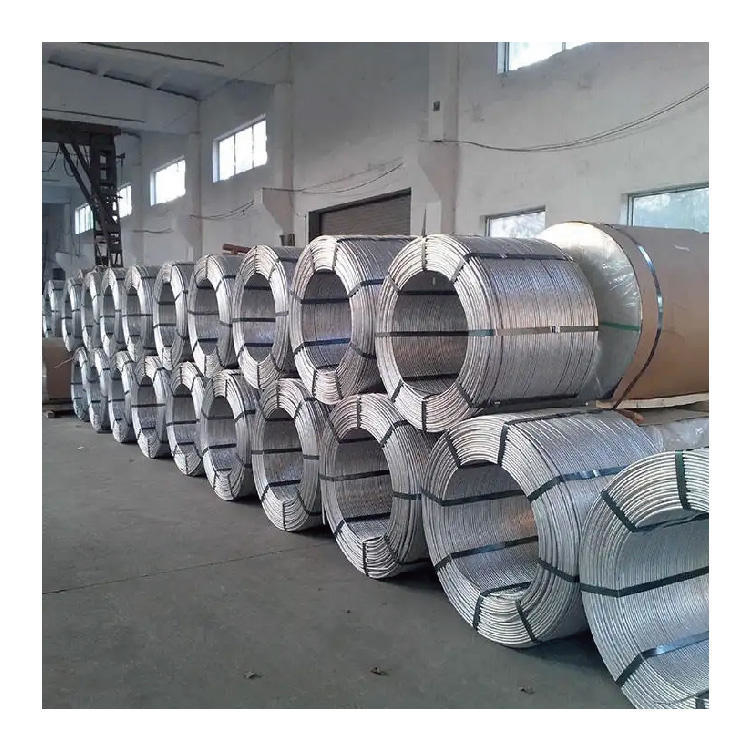

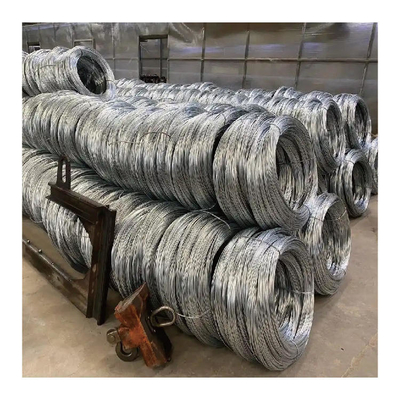

Aluminium wire rod is an excellent raw material for high-voltage cable and wire producers. With our special hot-rolling technology we can process a wide range of sizes and alloys, delivering fine-grained structures with excellent formability.
We offering full customization, design customization, and sample customization services, and has obtained product certification.
Quick Details
Specifications : ASTM B211, AMS 4120, AMS 4339, AMS-QQ-A-225/6, ASTM B221, AMS 4152, AMS 4164, AMS 4165, AMS-QQ-A-200/3
Standard : ASTM, ASME
Surface: Bright, Polish & Black
Aluminium Round Bar: Temper:O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Length :1M-6M,12M & Required Length
Diameter : 6.00 mm to 600.0mm
Grade : 1060,1350, 2014,2023,2a12,2024,5154, 5056, 5083, 5086, 5182 5005, 6061,6063,6082,7075,7a04
Product Description
Purity |
Chemical Composition% |
|||||
AL Minimum |
Foreign Content,Maximum |
|||||
Si |
Fe |
Cu |
V+Cr+Mn+Ti |
Other |
||
Al99.60E |
99.6 |
0.08 |
0.20 |
0.005 |
0.01 |
0.3 |
Type |
Tensile Strength,N/mm² | Fracture Toughness%,Min | Electrical Resistance Ωmm²/m 20,Max |
| A | 60-80 | 25 | 0.02755 |
| A2 | 80-110 | 12 | 0.02785 |
| A4 | 95-115 | 10 | 0.02801 |
| A6 | 110-130 | 8 | 0.02801 |
| A8 | 120-150 | 6 | 0.02801 |
Temper |
Tensile Strength |
|
Ks j |
M pa |
|
1350-O |
8.5-14.0 |
59-97 |
1350-H12 and-H22 |
12.0-17.0 |
83-117 |
1350-H14 and-H24 |
15.0-20.0 |
103-138 |
1350-H16 and-H26 |
17.0-22.0 |
117-152 |
Temper |
Resistivity |
Equivalent Volume Conductivity,% |
Max.Ω.mm2/m |
IACS Min. |
|
1350-O |
0.027899 |
61.8 |
1350-H12 and-H22 |
0.028035 |
61.5 |
1350-H14 and-H24 |
0.028080 |
61.4 |
1350-H16 and-H26 |
0.028126 |
61.3 |
Advantages:
Salt Spray Resistance: Withstands 3000+ hours ASTM B117 testing.
Chemical Resistance: Excellent performance in pH 4-10 range.
Uniform Protection: Consistent coating thickness (±2μm).
Cathodic Protection: Compatible with standard protection systems.
Long Service Life: 25+ year design life in aggressive environments.
Applications:
Our products have been used in all kinds of areas, such as aviation,aerospace,navigation,nuclear energy,chemical industry,electronic information,achine manufacture, petrochemical, automotive,instrument and meter, Communication, transportation, and medical instruments, etc.
Packing & Shipping
1.Standard seaworthy export packaging. Wooden pallets with plastics protection for the coil and sheet.
2.The packaging can be eye to sky or eye to wall based on the customer's requirement.
3.26 MT can be located into 20FCL, the sea freight rate is much cheaper than 40FCL.
4.Delivery Time: 15-25 days after receiving 30% Prepayments
Luoyang Sanwu Cable Co., Ltd., with registered capital of 106 million RMB, is a high-tech development company for scientific research, industry production and trading , offering a diverse selection of quality wires and cables to industrial customers in 33 countries worldwide. The leading products are ACSR, overhead conductor, AAAC, AAC, power cable, BLXY, home-used wire and so on.
FAQ
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 20 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What's the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C
